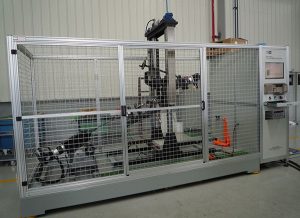

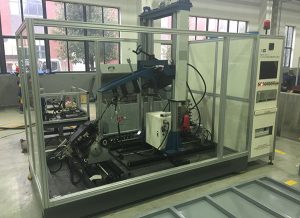

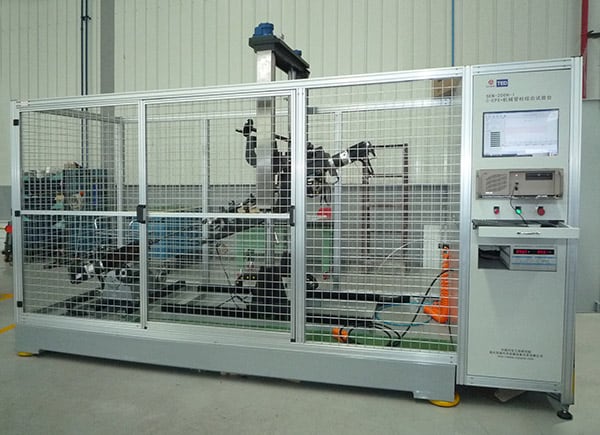

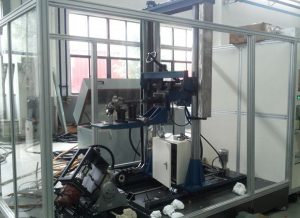

Steering Column Performance and Durability Test
Product description
The steering column performance and durability test bench consists of two sets of servo motor drive systems, one driven and one end loaded, which can simulate the installation of the steering column in a real vehicle and adjust the installation angle.
Features and Benefits
The core components are imported brands to ensure the stability and reliability of the whole system.
Real car mounting, double column lift, inlet and outlet angle adjustment.
The system has functions such as self-fault check, overload protection and overpressure alarm; Multi-threaded real-time data acquisition, real-time monitoring of the whole process.
Open, unified modular design, separate layout, easy maintenance, debugging and function expansion; It has a good man-machine dialog interface, the operation interface is simple and beautiful, and it can issue error warnings for illegal login.
Technical Parameters
project | torque | rotation speed |
login | 100Nm | 150r/m |
output | 200Nm | 200r/m |
Implementation Standards
QC/T 1081-2017 “Automobile Electric Power Steering Device”
QC/T 29096-2014 “Automotive Steering Gear Group Bench Test Method”
Q/CACDC-3.1-2014 “Commercial Vehicle Power Steering Gear Assembly Bench Test No. 1″ Piece: Test Methods”
QC/T 972-2014 “Technical Requirements and Test Methods for Automotive Electronically Controlled Power Steering Gear”
QC/T 529-2013 “Automotive Power Steering Gear Set Bench Test Methods”
